Double-ended Impact Bits

Phillips Double-Ended Bits,Torsion

Standard: 10.5mm Power Groove Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
0562-0201TS	PH 1	65	2-9/16"	2

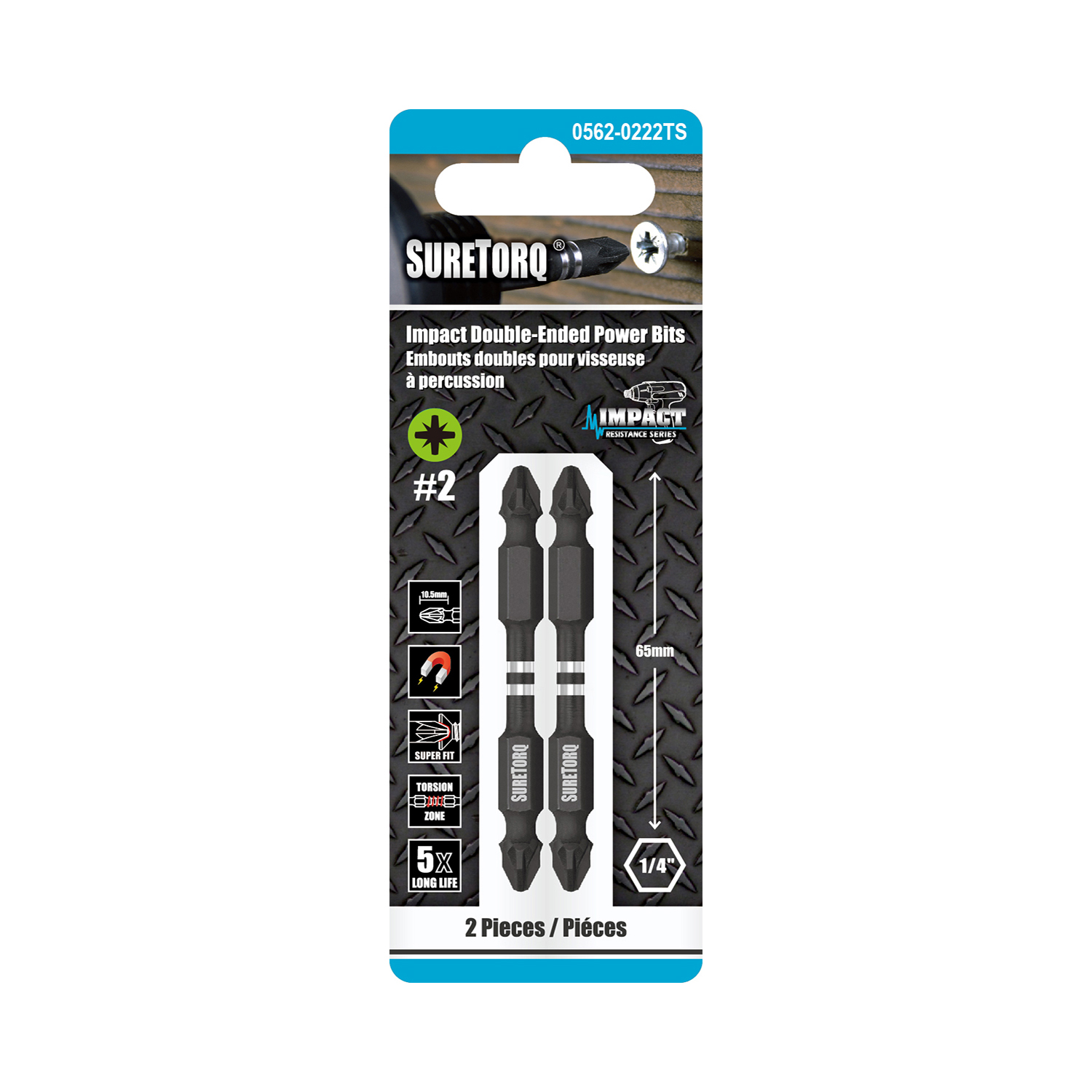

0562-0202TS	PH 2	65	2-9/16"	2
0562-0203TS	PH 3	65	2-9/16"	2
0562-0209TS	PH 1/PH 2	65	2-9/16"	2
0562-0212TS	PH 2/PH 3	65	2-9/16"	2
0562-0502TS	PH 2	65	2-9/16"	5
0564-0101TS	PH 1	100	4"	1
0564-0102TS	PH 2	100	4"	1
0564-0103TS	PH 3	100	4"	1
0564-0109TS	PH 1/PH 2	100	4"	1
0564-0112TS	PH 2/PH 3	100	4"	1
0566-0101TS	PH 1	150	6"	1
0566-0102TS	PH 2	150	6"	1
0566-0103TS	PH 3	150	6"	1
0566-0109TS	PH 1/PH 2	150	6"	1
0566-0112TS	PH 2/PH 3	150	6"	1

Pozidriv® Double-Ended Bits,Torsion

Standard: 10.5mm Power Groove Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
0562-0221TS	PZ 1	65	2-9/16"	2
0562-0222TS	PZ 2	65	2-9/16"	2
0562-0223TS	PZ 3	65	2-9/16"	2
0562-0227TS	PZ 1/PZ 2	65	2-9/16"	2
0562-0229TS	PZ 2/PZ 3	65	2-9/16"	2
0562-0522TS	PZ 2	65	2-9/16"	5
0564-0121TS	PZ 1	100	4"	1
0564-0122TS	PZ 2	100	4"	1
0564-0123TS	PZ 3	100	4"	1
0564-0127TS	PZ 1/PZ 2	100	4"	1
0564-0129TS	PZ 2/PZ 3	100	4"	1
0566-0121TS	PZ 1	150	6"	1
0566-0122TS	PZ 2	150	6"	1
0566-0123TS	PZ 3	150	6"	1
0566-0127TS	PZ 1/PZ 2	150	6"	1
0566-0129TS	PZ 2/PZ 3	150	6"	1

Square Double-Ended Bits,Torsion

Standard: 10.5mm Power Groove Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
0562-0231TS	SQ 1	65	2-9/16"	2
0562-0232TS	SQ 2	65	2-9/16"	2
0562-0233TS	SQ 3	65	2-9/16"	2
0562-0237TS	SQ 1/SQ 2	65	2-9/16"	2
0562-0239TS	SQ 2/SQ 3	65	2-9/16"	2
0562-0532TS	SQ 2	65	2-9/16"	5
0564-0131TS	SQ 1	100	4"	1
0564-0132TS	QS 2	100	4"	1
0564-0133TS	SQ 3	100	4"	1
0564-0137TS	SQ 1/SQ 2	100	4"	1
0564-0139TS	SQ 2/SQ 3	100	4"	1
0566-0131TS	SQ 1	150	6"	1
0566-0132TS	SQ 2	150	6"	1
0566-0133TS	SQ 3	150	6"	1
0566-0137TS	SQ 1/SQ 2	150	6"	1
0566-0139TS	SQ 2/SQ 3	150	6"	1

TORX® Double-Ended Bits,Torsion

Standard: 10.5mm Power Groove Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
0572-0210TS	Torx T10	65	2-9/16"	2
0572-0215TS	Torx T15	65	2-9/16"	2
0572-0220TS	Torx T20	65	2-9/16"	2

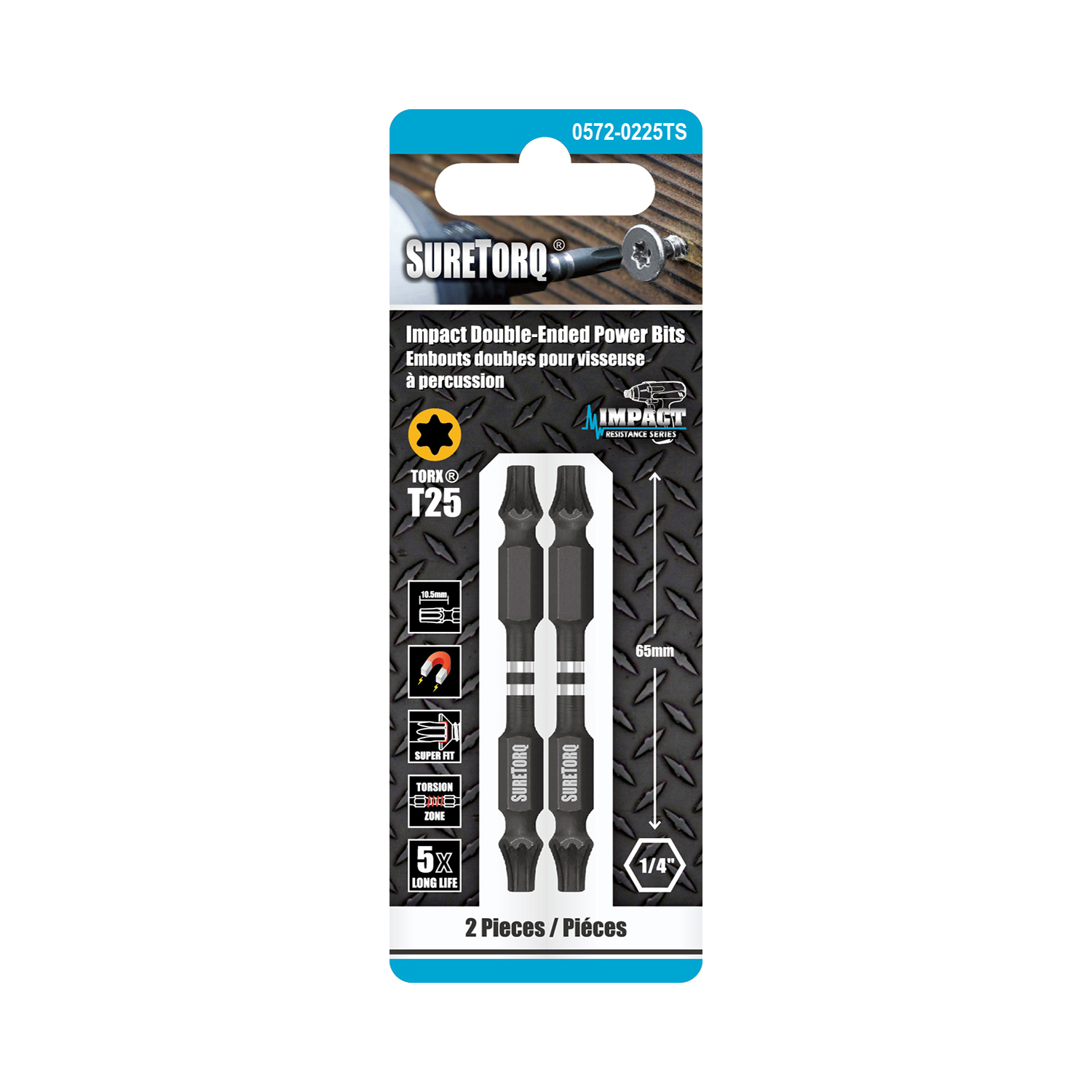

0572-0225TS	Torx T25	65	2-9/16"	2
0572-0227TS	Torx T27	65	2-9/16"	2
0572-0230TS	Torx T30	65	2-9/16"	2
0572-0240TS	Torx T40	65	2-9/16"	2
0572-0271TS	Torx T10/T15	65	2-9/16"	2
0572-0272TS	Torx T15/T20	65	2-9/16"	2
0571-0273TS	Torx T20/T25	65	2-9/16"	2
0572-0274TS	Torx T25/T30	65	2-9/16"	2
0572-0520TS	Torx T20	65	2-9/16"	5
0572-0525TS	Torx T25	65	2-9/16"	5
0572-0573TS	Torx T20/T25	65	2-9/16"	5
0574-0110TS	Torx T10	100	4"	1
0574-0115TS	Torx T15	100	4"	1
0574-0120TS	Torx T20	100	4"	1
0574-0125TS	Torx T25	100	4"	1
0574-0127TS	Torx T27	100	4"	1
0574-0130TS	Torx T30	100	4"	1
0574-0140TS	Torx T40	100	4"	1
0574-0171TS	Torx T10/T15	100	4"	1
0574-0172TS	Torx T15/T20	100	4"	1
0574-0173TS	Torx T20/T25	100	4"	1
0574-0174TS	Torx T25/T30	100	4"	1
0576-0110TS	Torx T10	150	6"	1
0576-0115TS	Torx T15	150	6"	1
0576-0120TS	Torx T20	150	6"	1
0576-0125TS	Torx T25	150	6"	1
0576-0127TS	Torx T27	150	6"	1
0576-0130TS	Torx T30	150	6"	1
0576-0140TS	Torx T40	150	6"	1
0576-0171TS	Torx T10/T15	150	6"	1
0576-0172TS	Torx T15/T20	150	6"	1
0576-0173TS	Torx T20/T25	150	6"	1
0576-0174TS	Torx T25/T30	150	6"	1

Hex Double-Ended Bits,Torsion

Standard: 10.5mm Power Groove Origin: China Introduction: Retail Package

Code	Size	Size(mm)	L(mm)	L(inch)	Pack
0592-0208TS	3/16"		65	2-9/16"	2
0592-0209TS	7/32"		65	2-9/16"	2
0592-0210TS	1/4"		65	2-9/16"	2
0592-0234TS		4.0	65	2-9/16"	2
0592-0235TS		5.0	65	2-9/16"	2
0592-0236TS		6.0	65	2-9/16"	2

Slotted Double-Ended Bits,Torsion

Standard: 10.5mm Power Groove Origin: China Introduction: Retail Package

Code	Size	Size(mm)	L(mm)	L(inch)	Pack
0582-0205TS	5-6		65	2-9/16"	2
0582-0206TS	6-8		65	2-9/16"	2
0582-0207TS	8-10		65	2-9/16"	2
0582-0208TS	10-12		65	2-9/16"	2
0582-0209TS		0.8X5.5	65	2-9/16"	2
0582-0241TS		1.0X6.0	65	2-9/16"	2
0582-0242TS		1.2X6.5	65	2-9/16"	2

Assorted Double-Ended Bits,Torsion

Standard: 10.5mm Power Groove Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
0552-0201TS	PH 2/PZ 2	65	2-9/16"	2
0552-0202TS	PH 2/SQ 2	65	2-9/16"	2
0552-0206TS	PH 2/SL8-10	65	2-9/16"	2
0552-0209TS	PH 2/SL1.0x6.0	65	2-9/16"	2
0552-0211TS	PH 2/Torx T25	65	2-9/16"	2
0552-0212TS	PZ 2/Torx T25	65	2-9/16"	2
0552-0213TS	SQ 2/Torx T25	65	2-9/16"	2
0554-0101TS	PH 2/PZ 2	100	4"	1
0554-0102TS	PH 2/SQ 2	100	4"	1
0554-0103TS	PH 2/Torx T25	100	4"	1
0554-0104TS	PZ 2/Torx T25	100	4"	1
0554-0105TS	SQ 2/Torx T25	100	4"	1
