TORX® Stainless Steel Bits

TORX® Insert Bits

Standard: DIN 3126,ISO 1173,C 6.3 Origin: China

Code	Size	L(mm)	L(inch)	Pack
3041-2508	Torx T8	25	1"	25
3041-2509	Torx T9	25	1"	25
3041-2510	Torx T10	25	1"	25
3041-2515	Torx T15	25	1"	25
3041-2520	Torx T20	25	1"	25
3041-2525	Torx T25	25	1"	25
3041-2527	Torx T27	25	1"	25
3041-2530	Torx T30	25	1"	25
3041-2540	Torx T40	25	1"	25

TORX® IPower Bits

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China

Code	Size	L(mm)	L(inch)	D(mm)	Pack
3042-1008	Torx T8	50	2"	3.5	10
3042-1009	Torx T9	50	2"	3.5	10
3042-1010	Torx T10	50	2"	4.0	10
3042-1015	Torx T15	50	2"	4.0	10
3042-1020	Torx T20	50	2"	4.8	10
3042-1025	Torx T25	50	2"	5.0	10
3042-1027	Torx T27	50	2"	6.0	10
3042-1030	Torx T30	50	2"	6.2	10
3042-1040	Torx T40	50	2"	-	10

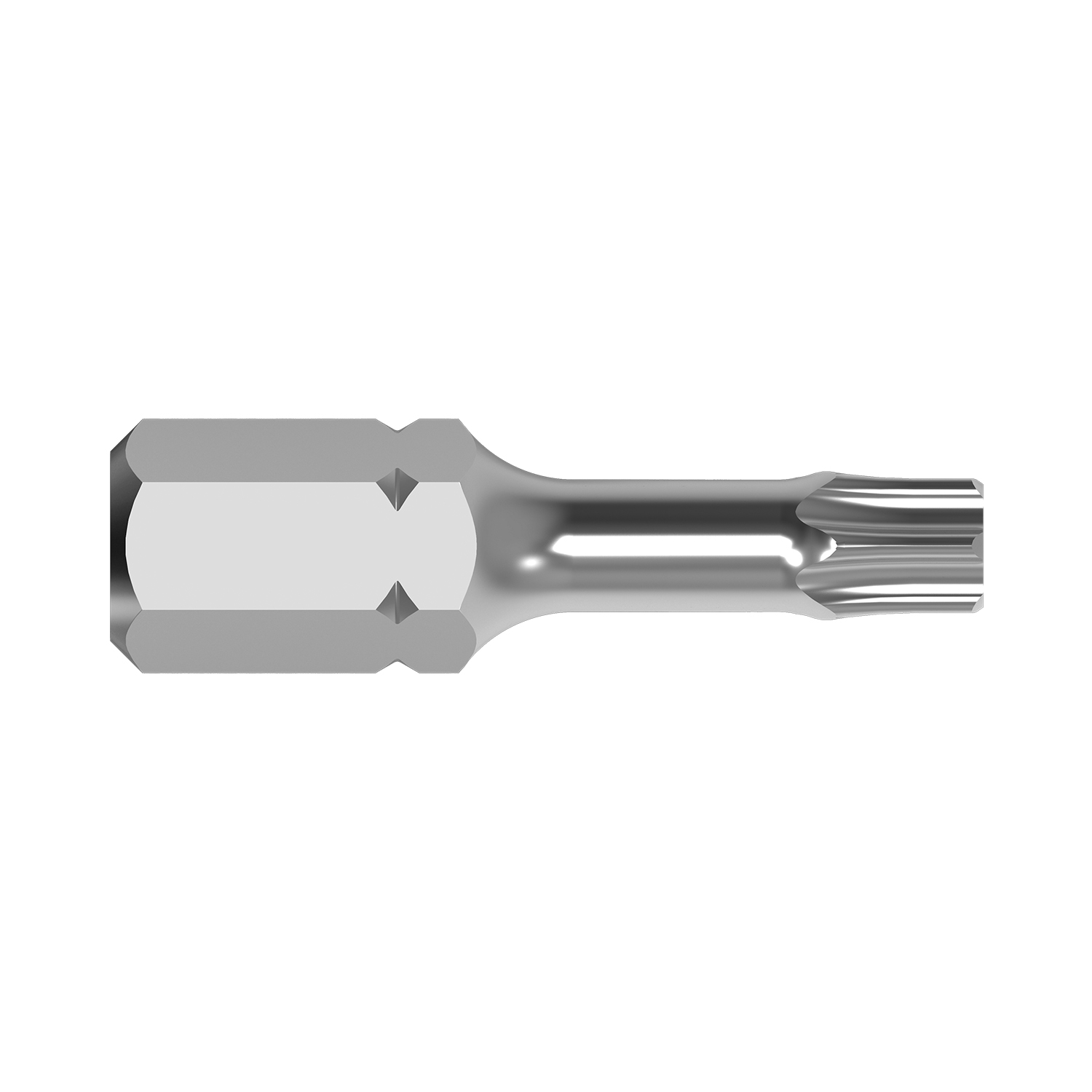

TORX® Insert Bits

Standard: DIN 3126,ISO 1173,C 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
3141-0208	Torx T8	25	1"	2
3141-0210	Torx T10	25	1"	2
3141-0215	Torx T15	25	1"	2
3141-0220	Torx T20	25	1"	2

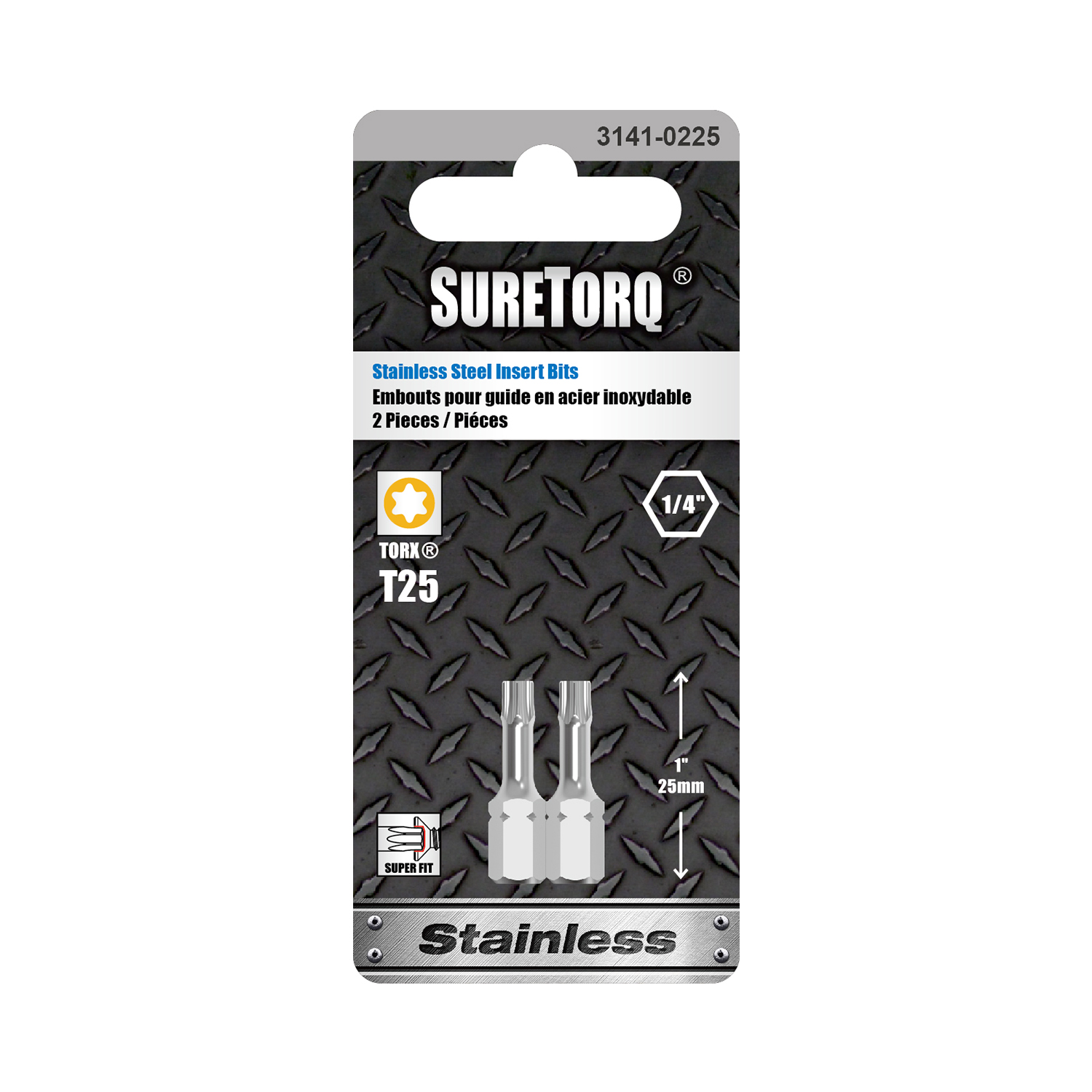

3141-0225	Torx T25	25	1"	2
3141-0227	Torx T27	25	1"	2
3141-0230	Torx T30	25	1"	2
3141-0240	Torx T40	25	1"	2

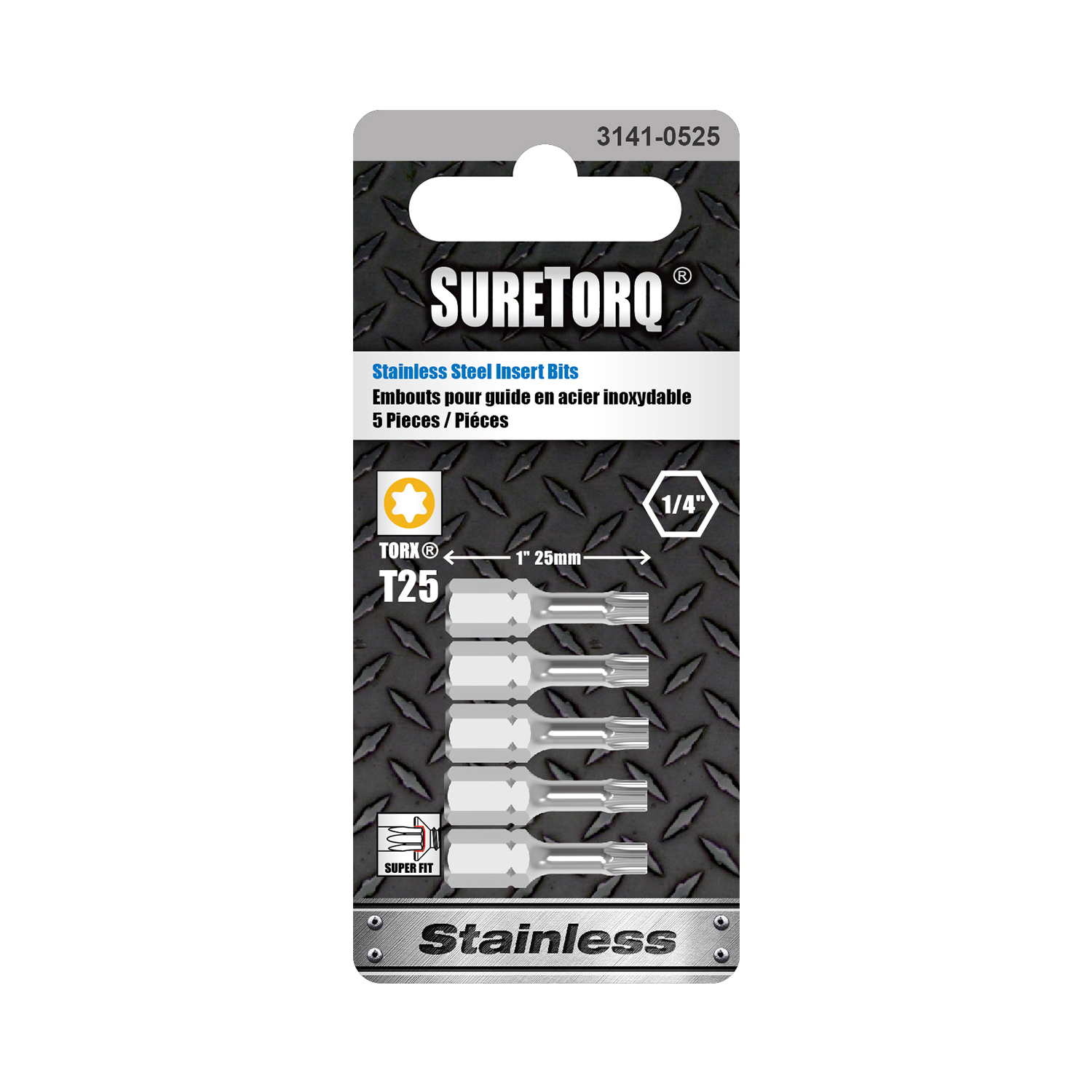

3141-0525	Torx T25	25	1"	2
3141-0501	Torx T10,T15,T20,T25,T30	25	1"	2

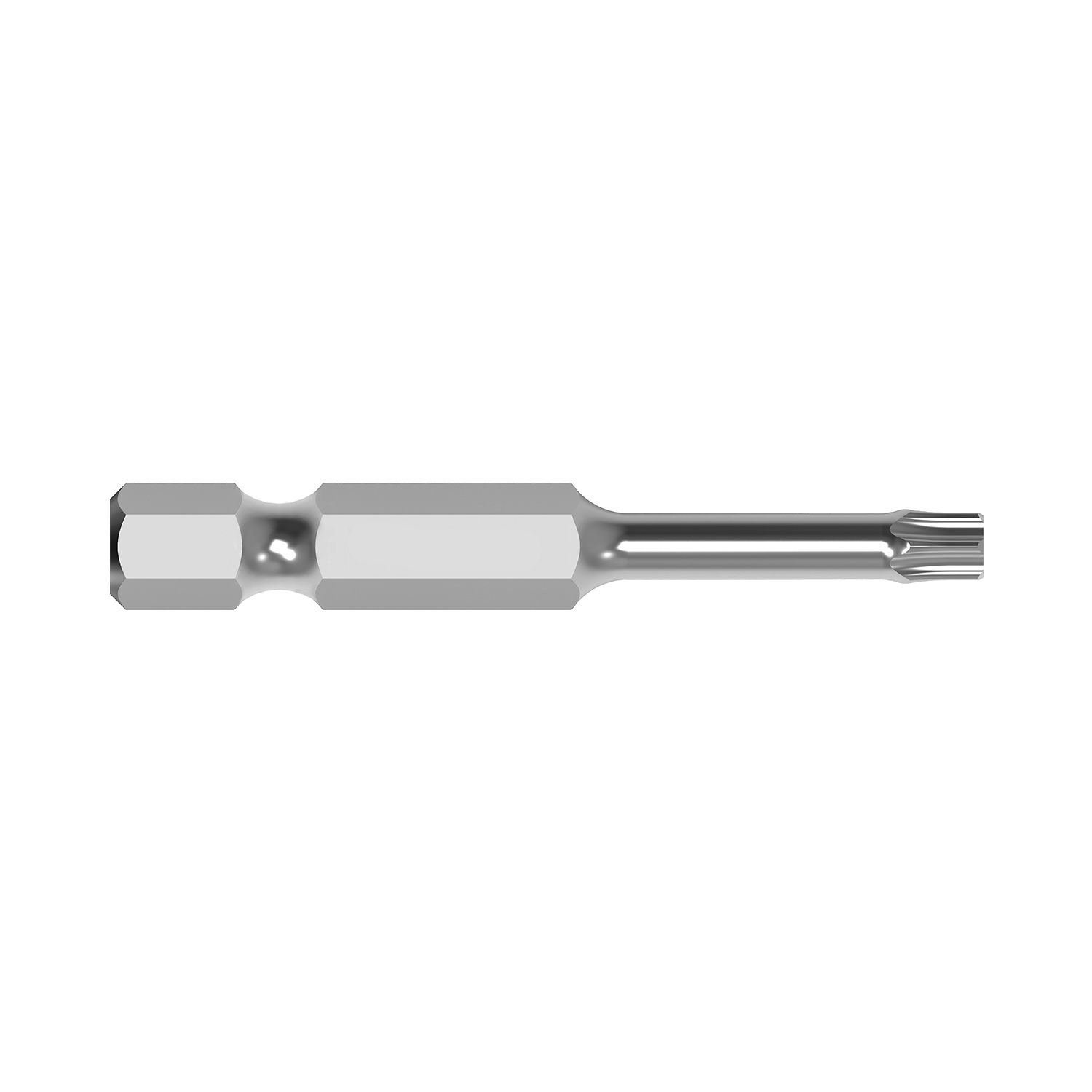

TORX® Power Bits

Standard: DIN 3126,ISO 1173,e 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
3142-0108	Torx T8	50	2"	1
3142-0110	Torx T10	50	2"	1
3141-0115	Torx T15	50	2"	1
3142-0120	Torx T20	50	2"	1

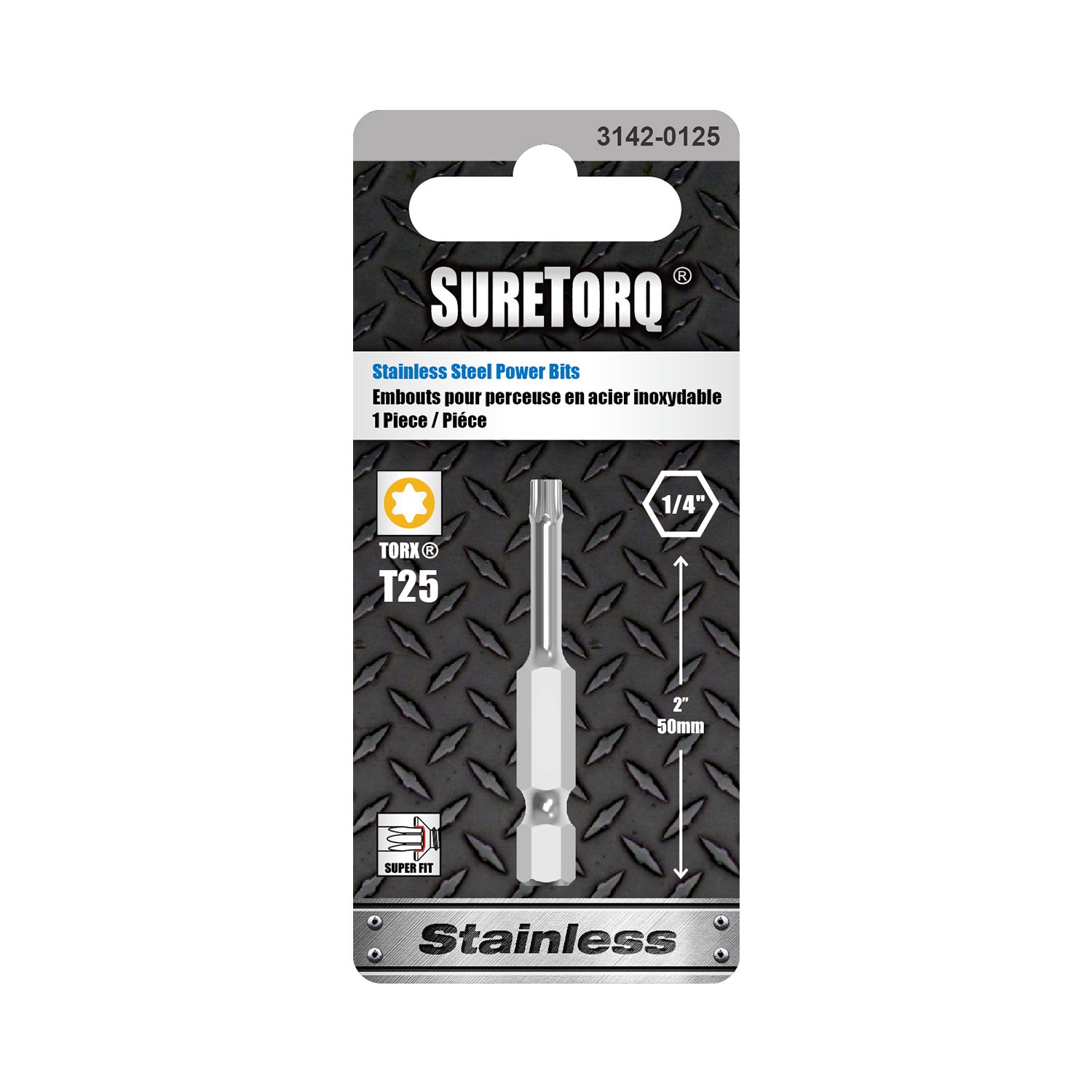

3142-0125	Torx T25	50	2"	1
3142-0127	Torx T27	50	2"	1
3142-0130	Torx T30	50	2"	1
3142-0140	Torx T40	50	2"	1
