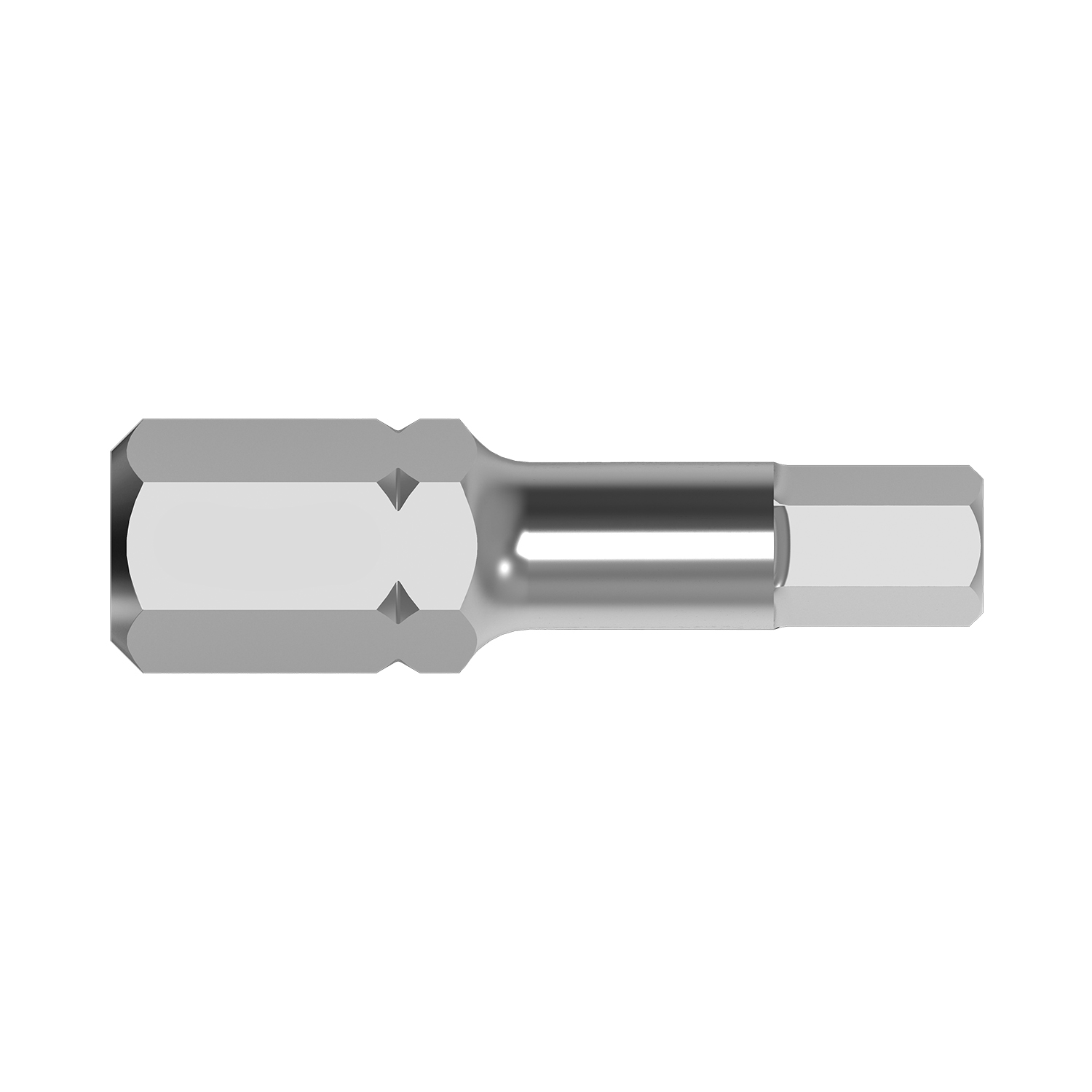

Hex Stainless Steel Bits

Hex Insert Bits

Standard: DIN 3126,ISO 1173,C 6.3 Origin: China

Code	Size	Size(mm)	L(mm)	L(inch)	Pack
3091-2503	3/32"		25	1"	25
3091-2504	7/64"		25	1"	25
3091-2505	1/8"		25	1"	25
3091-2506	9/64"		25	1"	25
3091-2507	5/32"		25	1"	25
3091-2508	3/16"		25	1"	25
3091-2509	7/32"		25	1"	25
3091-2510	1/4"		25	1"	25
3091-2530		1.5	25	1"	25
3091-2531		2.0	25	1"	25
3091-2532		2.5	25	1"	25
3091-2533		3.0	25	1"	25
3091-2534		4.0	25	1"	25
3091-2535		5.0	25	1"	25
3091-2536		6.0	25	1"	25

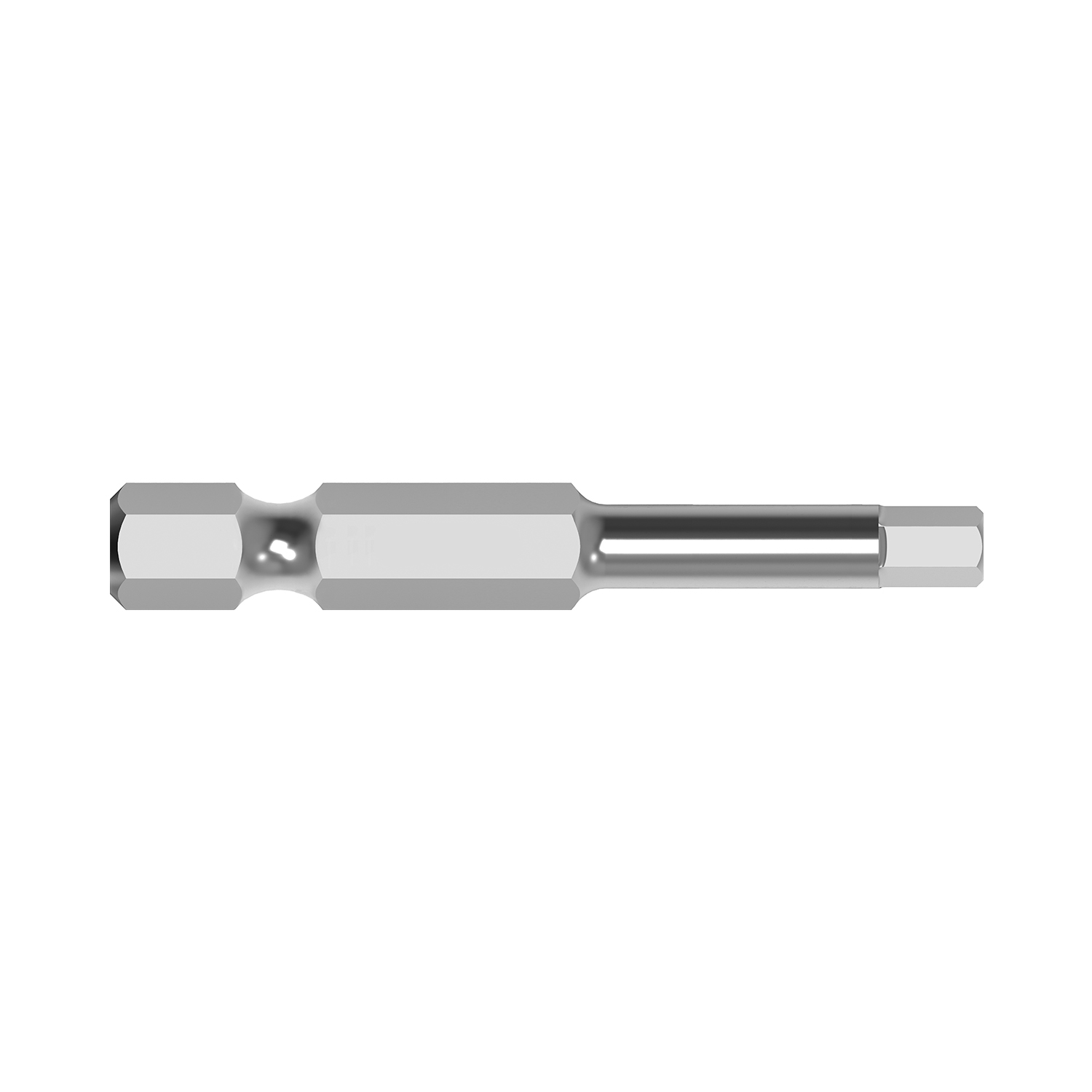

Hex Power Bits

Standard: DIN3126,ISO 1173,E 6.3 Origin: China

Code	Size	Size(mm)	L(mm)	L(inch)	D(mm)	Pack
3092-1003	3/32"		50	2"	2.5	10
3092-1004	7/64"		50	2"	3.0	10
3092-1005	1/8"		50	2"	3.5	10
3092-1006	9/64"		50	2"	4.0	10
3092-1007	5/32"		50	2"	4.5	10
3092-1008	3/16"		50	2"	5.5	10
3092-1009	7/32"		50	2"	6.3	10
3092-1010	1/4"		50	2"	-	10
3092-1030		1.5	50	2"	2.0	10
3092-1031		2.0	50	2"	2.5	10
3092-1032		2.5	50	2"	3.0	10
3092-1033		3.0	50	2"	3.5	10
3092-1034		4.0	50	2"	5.0	10
3092-1035		5.0	50	2"	6.0	10
3092-1036		6.0	50	2"	-	10

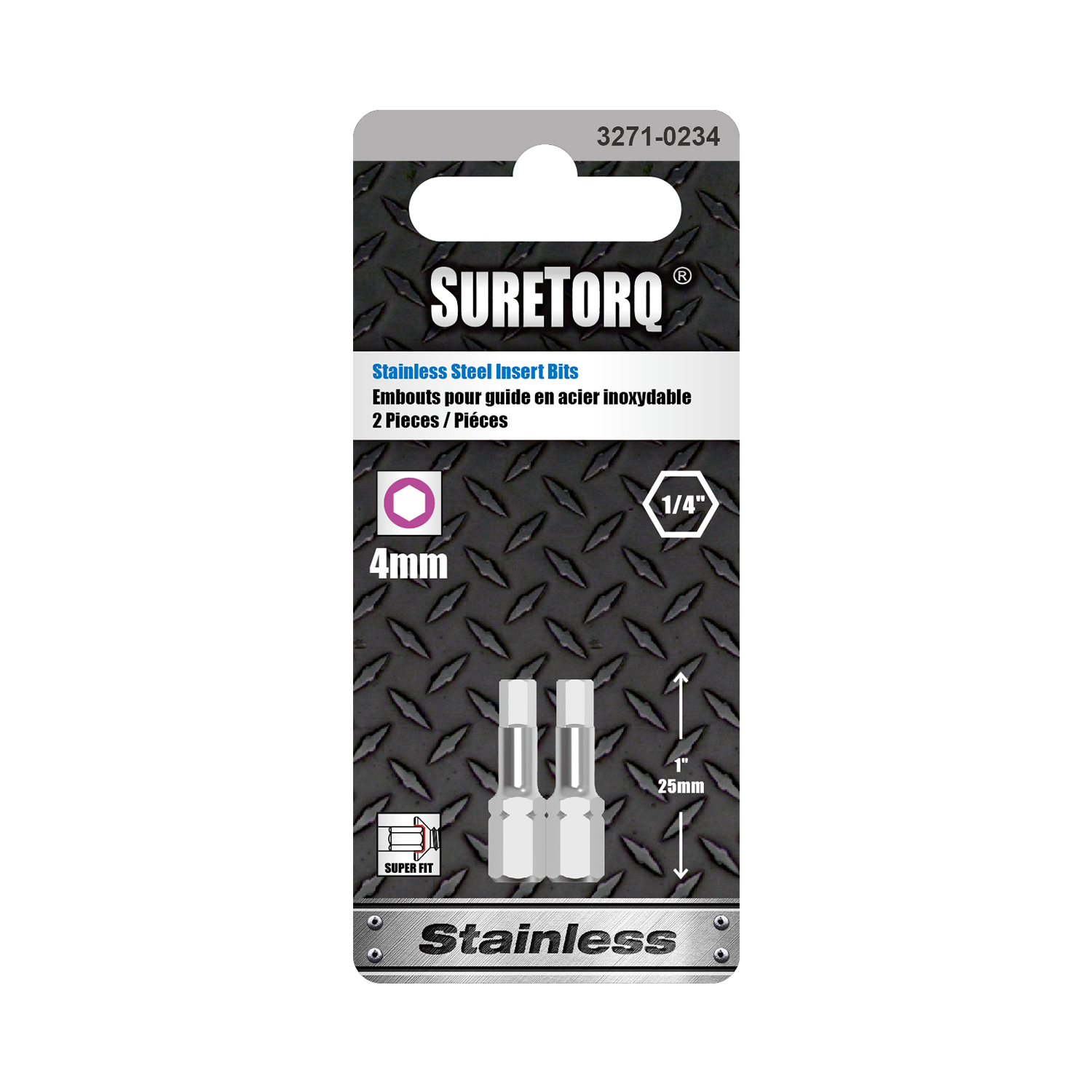

Hex Insert Bits

Standard: DIN 3126,ISO 1173,C 6.3 Origin: China Introduction: Retail Package

Code	Size	Size(mm)	L(mm)	L(inch)	Pack
3271-0203	3/32"		25	1"	2
3271-0204	7/64"		25	1"	2
3271-0205	1/8"		25	1"	2
3271-0206	9/64"		25	1"	2
3271-0207	5/32"		25	1"	2
3271-0208	3/16"		25	1"	2
3271-0209	7/32"		25	1"	2
3271-0210	1/4"		25	1"	2
3271-0230		1.5	25	1"	2
3271-0231		2.0	25	1"	2
3271-0232		2.5	25	1"	2
3271-0233		3.0	25	1"	2
3271-0234		4.0	25	1"	2
3271-0235		5.0	25	1"	2
3271-0236		6.0	25	1"	2

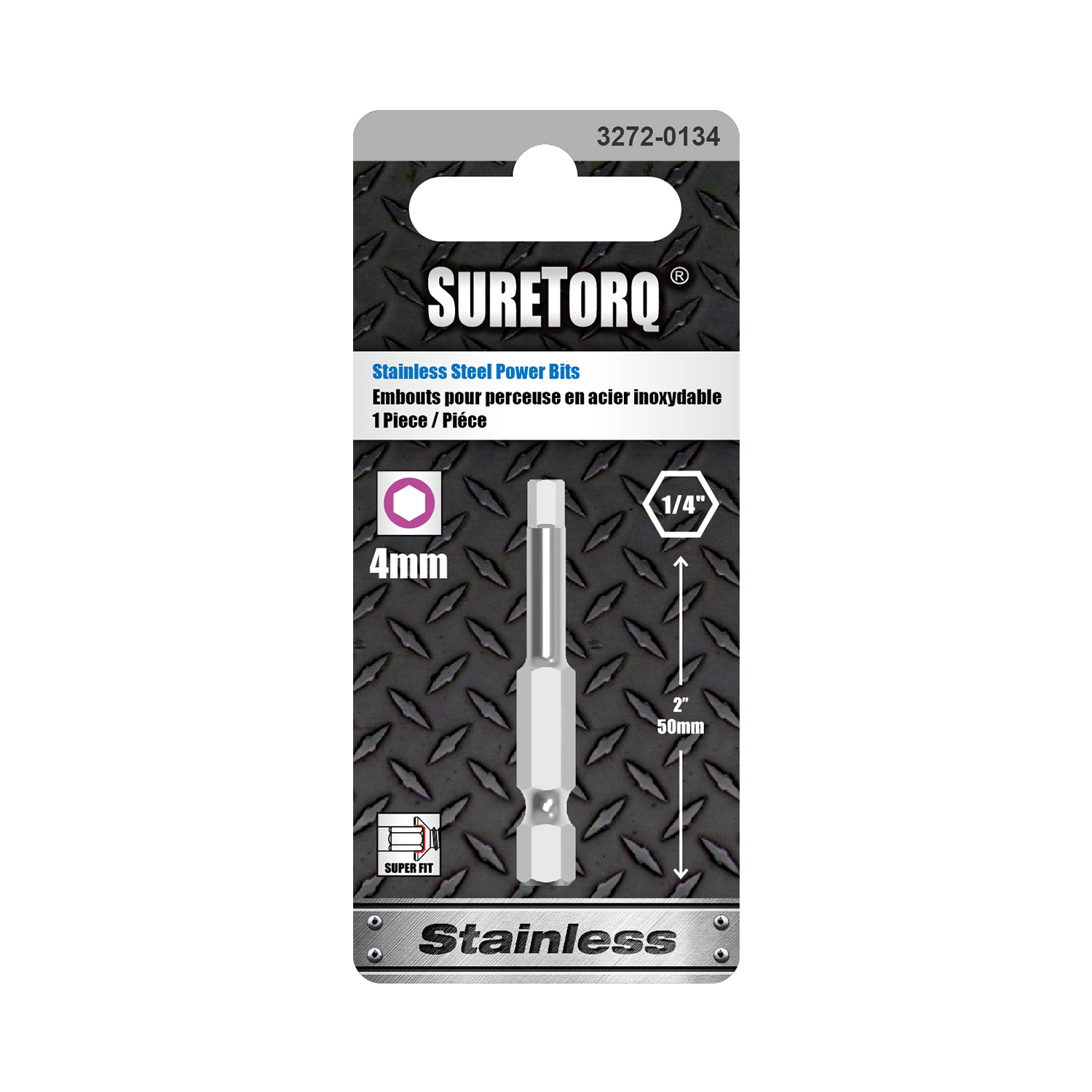

Hex Power Bits

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China Introduction: Retail Package

Code	Size	Size(mm)	L(mm)	L(inch)	Pack
3272-0103	3/32"		50	2"	1
3272-0104	7/64"		50	2"	1
3272-0105	1/8"		50	2"	1
3272-0106	9/64"		50	2"	1
3272-0107	5/32"		50	2"	1
3272-0108	3/16"		50	2"	1
3272-0109	7/32"		50	2"	1
3272-0110	1/4"		50	2"	1
3272-0130		1.5	50	2"	1
3272-0131		2.0	50	2"	1
3272-0132		2.5	50	2"	1
3272-0133		3.0	50	2"	1
3272-0134		4.0	50	2"	1
3272-0135		5.0	50	2"	1
3272-0136		6.0	50	2"	1
