TORX plus® IPR Screwdriver Bits

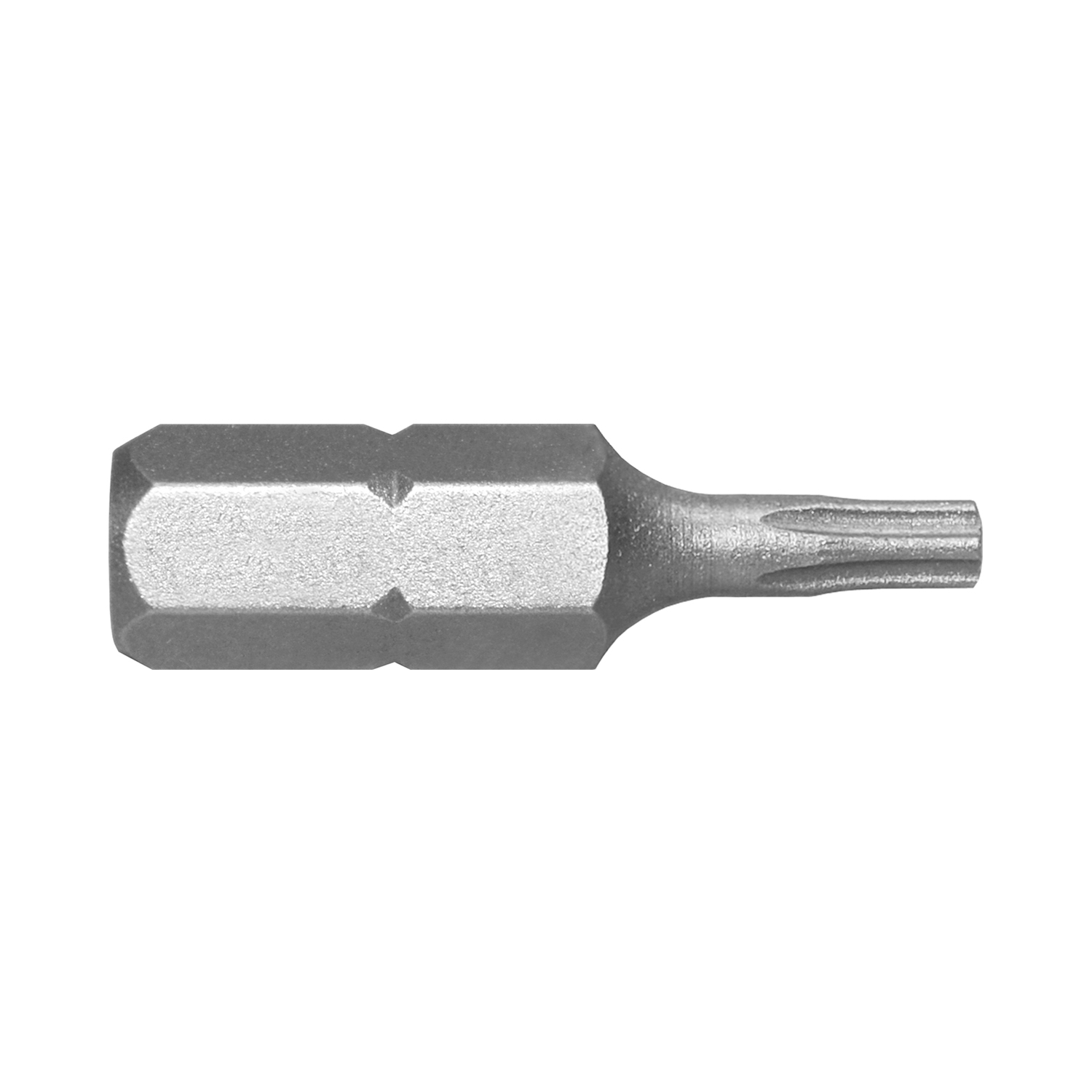

TORX PLUS® IPR Insert Bits

Standard: DIN 3126,ISO 1173,C 6.3 Origin: China

Code	Size	L(mm)	L(inch)	Pack
1241-2501	1 IPR	25	1"	25
1241-2502	2 IPR	25	1"	25
1241-2503	3 IPR	25	1"	25
1241-2504	4 IPR	25	1"	25
1241-2505	5 IPR	25	1"	25
1241-2506	6 IPR	25	1"	25
1241-2507	7 IPR	25	1"	25

TORX PLUS® IPR Insert Bits

Standard: DIN 3126,ISO 1173,C 6.3 Origin: China

Code	Size	L(mm)	L(inch)	Pack
1241-2508	8 IPR	25	1"	25
1241-2509	9 IPR	25	1"	25
1241-2510	10 IPR	25	1"	25
1241-2515	15 IPR	25	1"	25
1241-2520	20 IPR	25	1"	25
1241-2525	25 IPR	25	1"	25
1241-2527	27 IPR	25	1"	25
1241-2530	30 IPR	25	1"	25
1241-2540	40 IPR	25	1"	25

TORX PLUS® IPR Insert Bits,H5/16

Standard: DIN 3126,ISO 1173,C 8 Origin: China

Code	Size	L(mm)	L(inch)	Pack
1241-1045	45 IPR	32	1-1/4"	10
1241-1050	50 IPR	32	1-1/4"	10
1241-1055	55 IPR	32	1-1/4"	10

TORX PLUS® IPR Power Bits

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China

Code	Size	L(mm)	L(inch)	Pack
1242-1001	1 IPR	50	2"	10
1242-1002	2 IPR	50	2"	10
1242-1003	3 IPR	50	2"	10
1242-1004	4 IPR	50	2"	10
1242-1005	5 IPR	50	2"	10
1242-1006	6 IPR	50	2"	10
1242-1007	7 IPR	50	2"	10

TORX PLUS® IPR Power Bits

Origin: China

Code	Size	L(mm)	L(inch)	Pack
1242-1008	8 IPR	50	2"	10
1242-1009	9 IPR	50	2"	10
1242-1010	10 IPR	50	2"	10
1242-1015	15 IPR	50	2"	10
1242-1020	20 IPR	50	2"	10
1242-1025	25 IPR	50	2"	10
1242-1027	27 IPR	50	2"	10
1242-1030	30 IPR	50	2"	10
1242-1040	40 IPR	50	2"	10

TORX PLUS® IPR Power Bits,Turned Down Shank

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China

Code	Size	L(mm)	L(inch)	D(mm)	Pack
1242-1001D20	1 IPR	50	2"	2	10
1242-1002D20	2 IPR	50	2"	2	10
1242-1003D20	3 IPR	50	2"	2	10
1242-1004D30	4 IPR	50	2"	3	10
1242-1005D30	5 IPR	50	2"	3	10
1242-1006D30	6 IPR	50	2"	3	10
1242-1007D30	7 IPR	50	2"	3	10
1247-1005D30	5 IPR	75	3"	3	10
1247-1006D30	6 IPR	75	3"	3	10
1247-1007D30	7 IPR	75	3"	3	10
1243-1005D30	5 IPR	89	3-1/2"	3	10
1243-1006D30	6 IPR	89	3-1/2"	3	10
1243-1007D30	7 IPR	89	3-1/2"	3	10

TORX PLUS® IPR Power Bits,Turned Down Shank

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China

Code	Size	L(mm)	L(inch)	D(mm)	Pack
1242-1008D35	8 IPR	50	2"	3.5	10
1242-1009D35	9 IPR	50	2"	3.5	10
1242-1010D40	10 IPR	50	2"	4.0	10
1242-1015D40	15 IPR	50	2"	4.0	10
1242-1020D48	20 IPR	50	2"	4.8	10
1242-1025D50	25 IPR	50	2"	5.0	10
1242-1027D60	27 IPR	50	2"	6.0	10
1242-1030D62	30 IPR	50	2"	6.2	10
1247-1008D35	8 IPR	75	3"	3.5	10
1247-1009D35	9 IPR	75	3"	3.5	10
1247-1010D40	10 IPR	75	3"	4.0	10
1247-1015D40	15 IPR	75	3"	4.0	10
1247-1020D48	20 IPR	75	3"	4.8	10
1247-1025D50	25 IPR	75	3"	5.0	10
1247-1027D60	27 IPR	75	3"	6.0	10
1247-1030D62	30 IPR	75	3"	6.2	10
1243-1008D35	8 IPR	89	3-1/2"	3.5	10
1243-1009D35	9 IPR	89	3-1/2"	3.5	10
1243-1010D40	10 IPR	89	3-1/2"	4.0	10
1243-1015D40	15 IPR	89	3-1/2"	4.0	10
1243-1020D48	20 IPR	89	3-1/2"	4.8	10
1243-1025D50	25 IPR	89	3-1/2"	5.0	10
1243-1027D60	27 IPR	89	3-1/2"	6.0	10
1243-1030D62	30 IPR	89	3-1/2"	6.2	10
