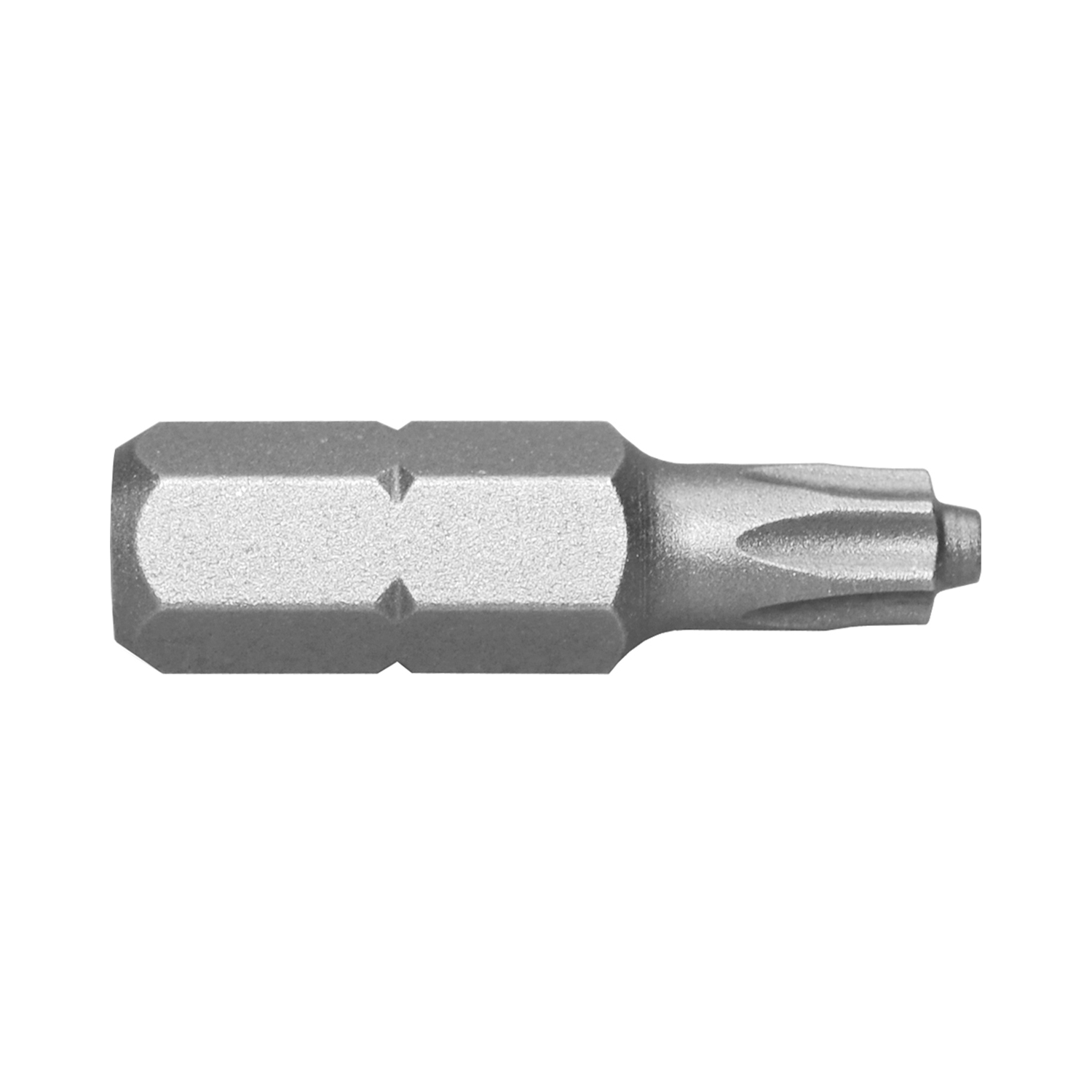

TORX® ttap® Screwdriver Bits

TORX® ttap® Insert Bits

Standard: DIN 3126,ISO 1173,C 6.3 Origin: China

Code	Size	L(mm)	L(inch)	Pack
1341-2510	ttap T10	25	1"	25
1341-2515	ttap T15	25	1"	25
1341-2520	ttap T20	25	1"	25
1341-2525	ttap T25	25	1"	25
1341-2530	ttap T30	25	1"	25
1341-2540	ttap T40	25	1"	25

TORX® ttap® Power Bits,Turned Down Shank

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China

Code	Size	L(mm)	L(inch)	D(mm)	Pack
1342-1010D40	ttap T10	50	2"	4.0	10
1342-1015D40	ttap T15	50	2"	4.0	10
1342-1020D48	ttap T20	50	2"	4.8	10
1342-1025D50	ttap T25	50	2"	5.0	10
1342-1030D62	ttap T30	50	2"	6.2	10
1343-1010D40	ttap T10	50	3-1/2"	4.0	10
1343-1015D40	ttap T15	50	3-1/2"	4.0	10
1343-1020D48	ttap T20	50	3-1/2"	4.8	10
1343-1025D50	ttap T25	50	3-1/2"	5.0	10
1343-1030D60	ttap T30	50	3-1/2"	6.2	10

TORX® ttap® Insert Bits

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
1351-0210	Torx T10	25	1"	2
1351-0215	Torx T15	25	1"	2
1351-0220	Torx T20	25	1"	2
1351-0225	Torx T25	25	1"	2
1351-0230	Torx T30	25	1"	2
1351-0240	Torx T40	25	1"	2

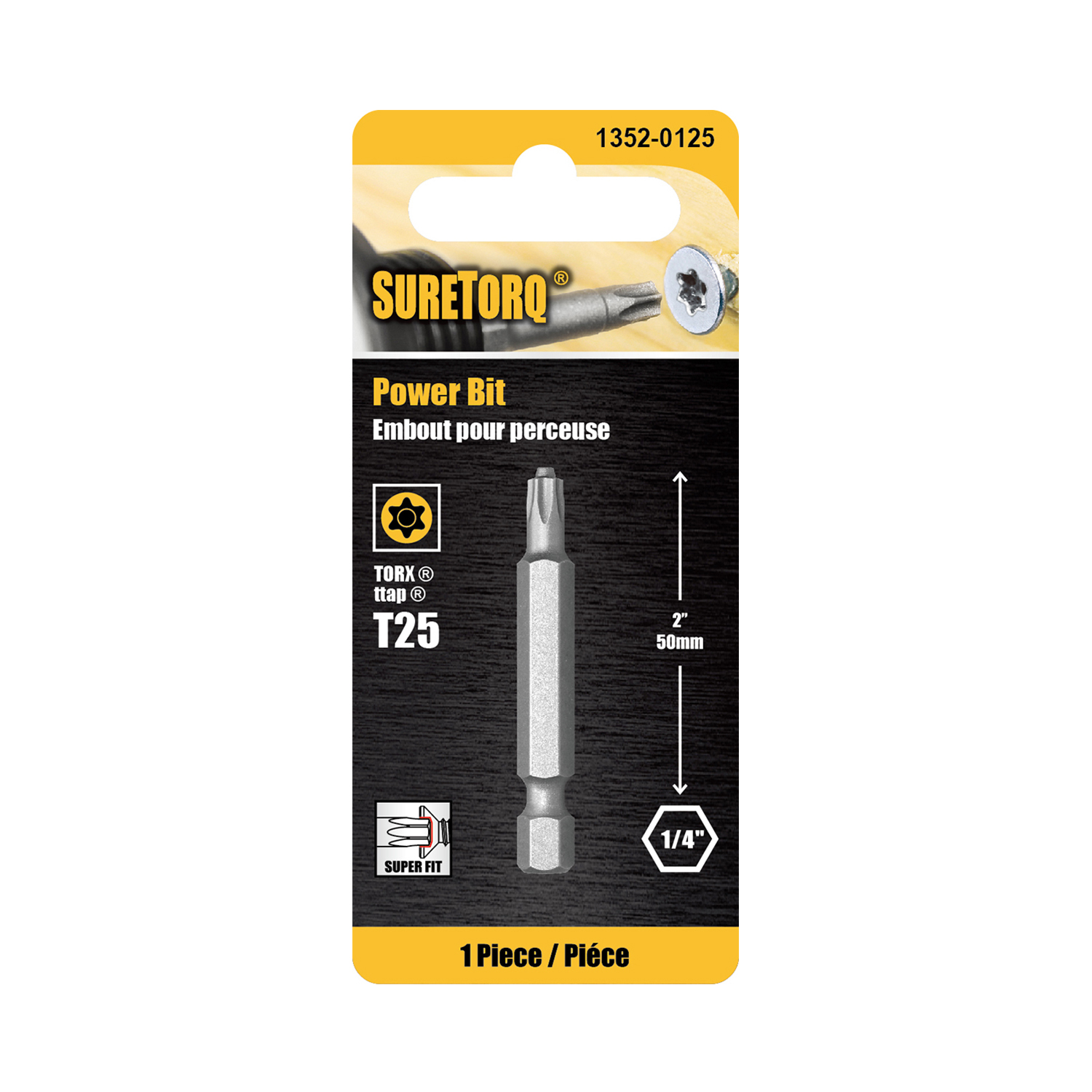

TORX® ttap® Power Bits

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
1352-0110	ttap T10	50	2"	1
1352-0115	ttap T15	50	2"	1
1352-0120	ttap T20	50	2"	1
1352-0125	ttap T25	50	2"	1
1352-0130	ttap T30	50	2"	1
1352-0140	ttap T40	50	2"	1
